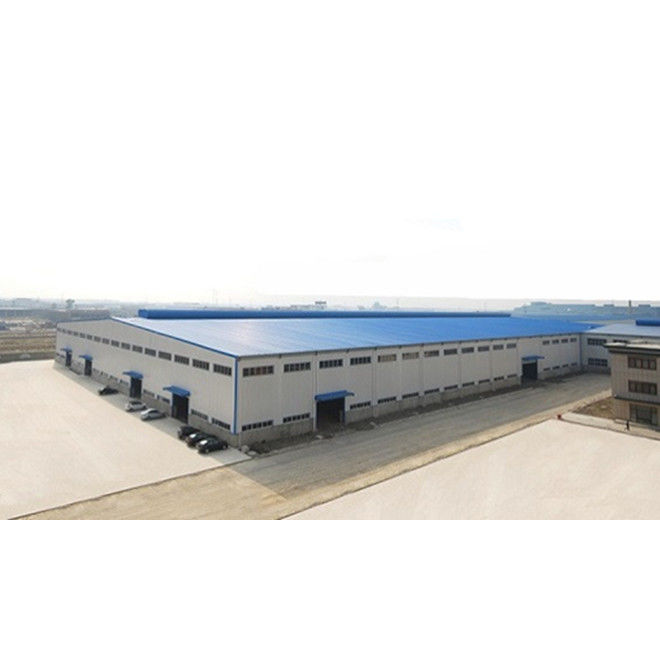

Single Storey Metal Frame Warehouse
, Painted Surface Metal Frame Warehouse
, Fast Installation Metal Frame Warehouse
Your Building details confirm to get the design & quotation:
|
Size
|
Length × Width × Length
|
|
Building Application
|
its exact usage or special requirements
|
|
Roof & Wall material
|
Steel sheet ? Insulated Panel ? Decorative Panel?
|
|
Crane
|
yes or not? Ton?
|
|
Wind Load
|
wind speed km/h or m/s or mph?
|
|
Snow Load
|
snow weight kg/m2 or snow thickness or Kn/m2?
|
|
Door & Window
|
Sizes? Quantity? Layout?
|
|
Inner Layout
|
Partition room?
|
|
More options
|
Parapet? Skylight? Ventilation? Canopy? Glass wall curtain?
|
We own more than 20 engineers who have abundant experience for various types buildings. Before design, all requirements will be collected from clients. The design will obey the requirements and pass the calculation check by the architectural soft, such as CAD, PKPM, 3D3S etc.
For the initial planning, we will design the construction blueprint after confirming the client’s requirements details. With the check and feedback from the clients, we will make the revise if possible.
After the confirm, we will make further steel structure detailed drawing to prepare the production. This will still be offered to the clients to confirm. Double check will guarantee the building with correct details.
If necessary, finial 3D model will be offered if needed.
|
Items
|
Specification
|
|
Main steel frame
|
Column
|
Q355 Welded H Section Steel (equivalent to S355JR, ASTM A572 Gr. 50)
|
|
Beam
|
Q355 Welded H Section Steel (equivalent to S355JR, ASTM A572 Gr. 50)
|
|
Secondary Frame
|
Purlin
|
Q235 C and Z purlin (equivalent to S235JR, ASTM A36)
|
|
Knee brace
|
Q235 Angle Steel (equivalent to S235JR, ASTM A36)
|
|
Tie Rod
|
Q235 Circular Steel Pipe (equivalent to S235JR, ASTM A36)
|
|
Brace
|
Q235 Round Bar (equivalent to S235JR, ASTM A36)
|
|
Maintenance system
|
Roof Panel
|
EPS Sandwich Panel/ Giass Fiber Sandwich Panel/ Rock Wool Sandwich Panel
|
|
Wall Panel
|
Sandwich Panel/ Corrugated Steel Sheet
|
|
Accessories
|
Window
|
Aluminiumn Alloy Window/ PVC Window/ Sandwich Panel Window
|
|
Door
|
Sliding Sandwich Panel Door/ Rolling Metal Door/ Personal Door
|
|
Structure Usage
|
Up to 50 years
|
|
Finishing Options
|
Vast array of colors and textures available
|
Processing Steps of Prefabricated Steel Structure Buildings:
Planning and Design
Prefabricated steel buildings starts with a detailed planning and design phase. During this stage, the project’s requirements are identified, and the building’s specifications are established. Factors such as size, layout, and intended usage are considered to ensure that the final design meets the client’s needs. The planning phase also includes obtaining necessary permits and approvals, as local regulations may impact the building’s design.
Fabrication in the workshop
Once the design is finalized, the components are manufactured in a factory. The use of advanced technology in the manufacturing process ensures that the components are of high quality and precisely engineered for quick assembly.
On-Site Assembly
After the prefabricated components are transported to the site, the assembly process begins. Since the parts are pre-engineered, they fit together seamlessly, making the installation process much faster than traditional construction methods. A skilled team of workers assembles the steel frame, attaches the wall panels, and installs the roofing system. Depending on the size and complexity of the building, the assembly process can take anywhere from a few days to a few weeks.
